Application & Features:

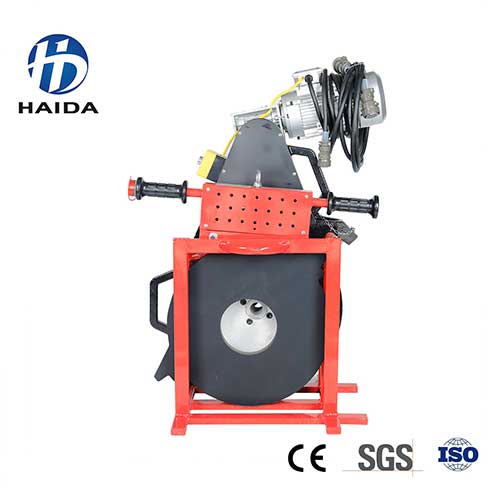

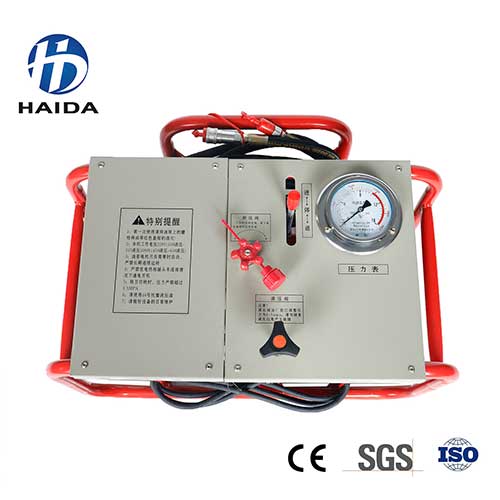

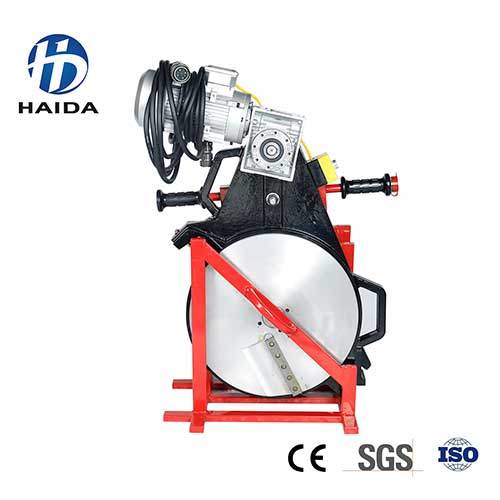

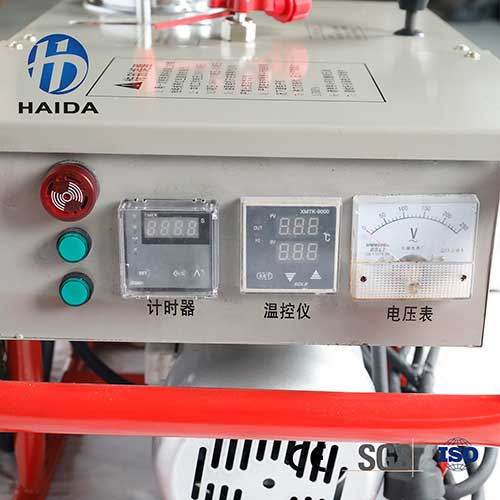

1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket
2.Working Environment must be Between -40~45ºC
3.Pesssure Adjustable Range:0-16 Mpa
4.Max. Temperature of Heating Plate:270 ºC
5.Suitable for PE,PPR,PB,PVDF
Product Number:HD-YY800 | Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Control Box, Basket (Electric Crane and Hoist is Optional) | |||||
Welding Range(mm) | 630、710、800 | |||||
Packing Size(cm) | Wooden Box (1):83*60*56cm, (2):186*135*135cm,(3):136*76*187cm | |||||
Total Volume | 5.602m³ | Net Weight | 1175KG | Gross Weight | 1345KG | |
Component Name | Rack | Heating Plate | Milling Cutter | Basket | Control Box | Hydraulic Station |
Size(cm) | 175*130*128 | 98*9*104 | 97*36*150 | 81*67*90 | 38*20*43 | 74*50*45 |
Weight | 802KG | 61KG | 202KG | 48KG | 10KG | 52KG |
Total Power | 15.8kw/380V | |||||
