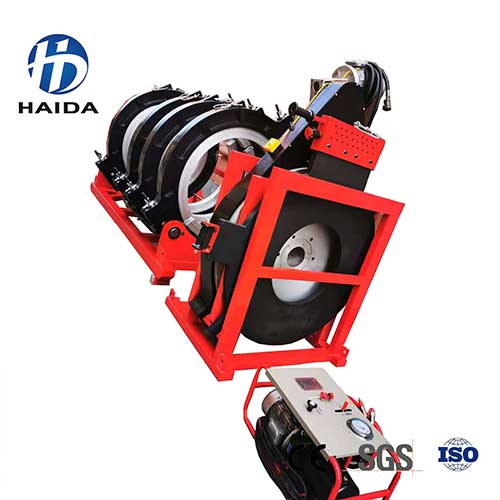

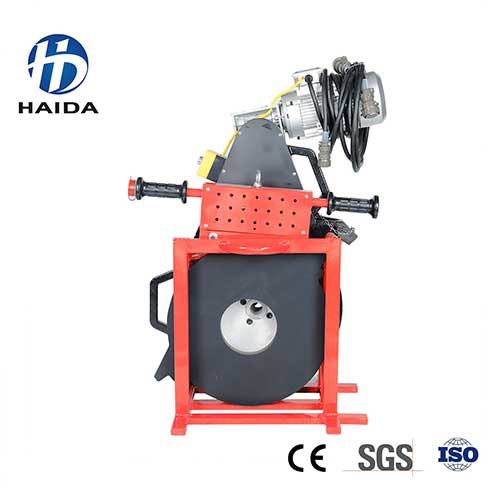

HD-YY450 HYDRAULIC BUTT FUSION WELDING MACHINE

Product Description

Application & Features:


1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket


2.Working Environment must be Between -40~45ºC


3.Pesssure Adjustable Range:0-10 Mpa


4.Max. Temperature of Heating Plate:270 ºC


5.Suitable for PE,PPR,PB,PVDF


Product Number:HD-YY450

Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Control Box, Basket

Welding Range(mm)

180、200、225、250、280、315、355、400、450

Packing Size(cm)

Wooden Box (1):131*90*96cm, (2):94*55*123cm,(3):75*54*48cm

Total Volume

1.97m³

Net Weight

347KG

Gross Weight

400KG

Component Name

Rack

Heating Plate

Milling Cutter

Basket

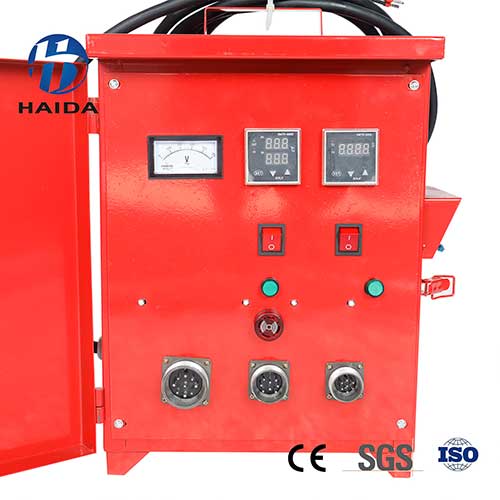

Control Box

Hydraulic Station

Size(cm)

120*74*79

70*10*70

63*16*98

50*50*60

38*20*43

58*46*45

Weight

200KG

16KG

59KG

13KG

10KG

49KG

Total Power

8.2kw/380V
