Application & Features:

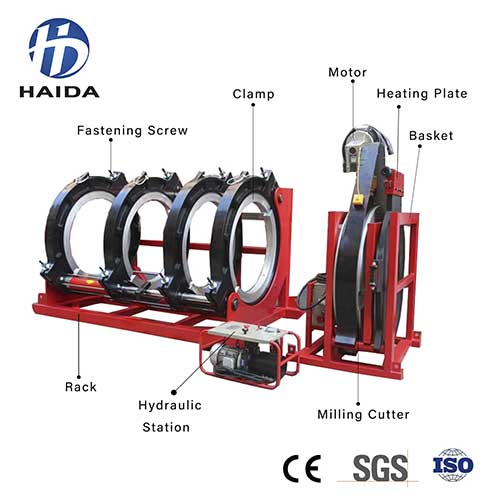

1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket
2.Working Environment must be Between -40~45ºC
3.Pesssure Adjustable Range:0-6 Mpa
4.Max. Temperature of Heating Plate:270 ºC
5.Suitable for PE,PPR,PB,PVDF
Product Number:HD-YY355 | Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Basket | ||||
Welding Range(mm) | 160、180、200、225、250、280、315、355 | ||||
Packing Size(cm) | Wooden Box (1):99*65*61cm, (2):74*71*66cm | ||||
Total Volume | 0.74m³ | Net Weight | 201.2KG | Gross Weight | 210KG |
Component Name | Rack | Heating Plate | Milling Cutter | Basket | Hydraulic Station |
Size(cm) | 94*64*62 | 50*6*57 | 60*39*63 | 52.5*28.5*59 | 58*47*47 |
Weight | 111.5KG | 10.3KG | 32KG | 5.9KG | 41.5KG |
Total Power | 5.35kw/220V | ||||
