Application & Features:

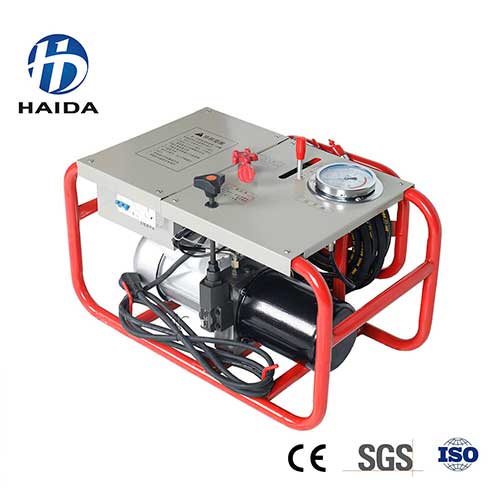

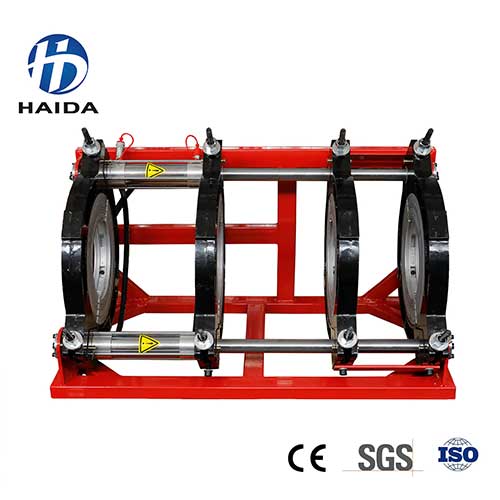

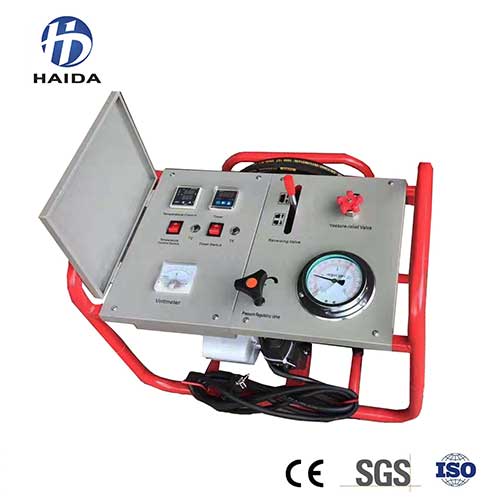

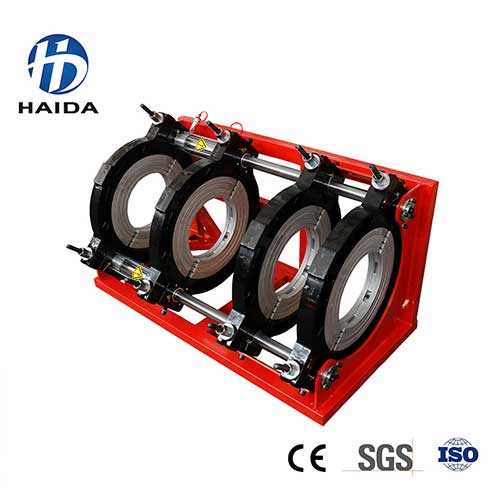

1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket
2.Working Environment must be Between -40~45ºC
3.Pesssure Adjustable Range:0-6 Mpa
4.Max. Temperature of Heating Plate:270 ºC
5.Suitable for PE,PPR,PB,PVDF
Product Number:HD-YY315 | Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Basket | ||||
Welding Range(mm) | 75、90、110、125、140、160、180、200、225、250、280、315 | ||||
Packing Size(cm) | Wooden Box (1):99*65*61cm, (2):74*71*66cm | ||||
Total Volume | 0.74m³ | Net Weight | 154.8KG | Gross Weight | 187.3KG |
Component Name | Rack | Heating Plate | Milling Cutter | Basket | Hydraulic Station |
Size(cm) | 94*62*60 | 44*5*53 | 59*38*38 | 48*28.5*56.5 | 58*47*47 |
Weight | 80KG | 7.8KG | 22KG | 3.5KG | 41.5KG |
Total Power | 4.95kw/220V | ||||
