Application and Features:

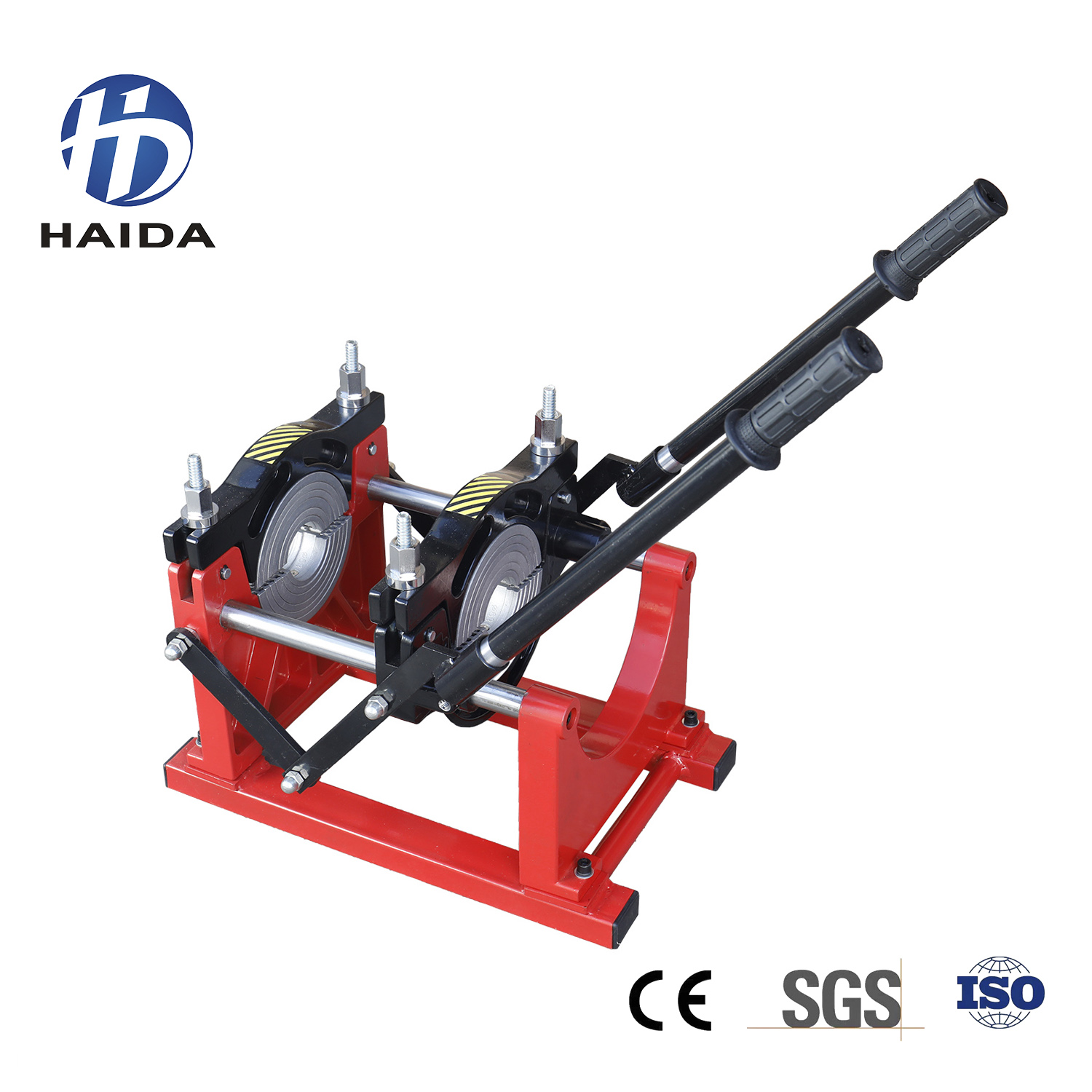

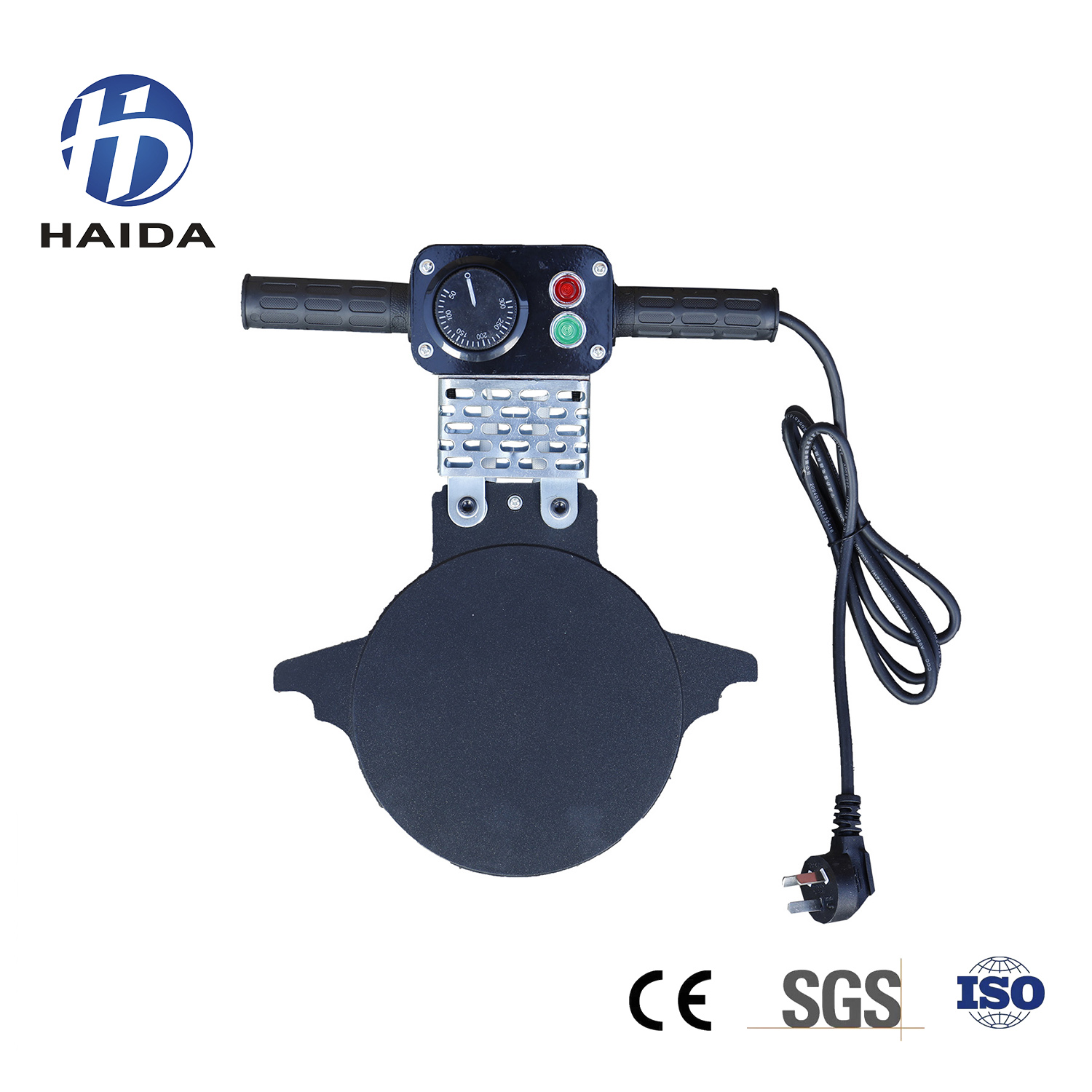

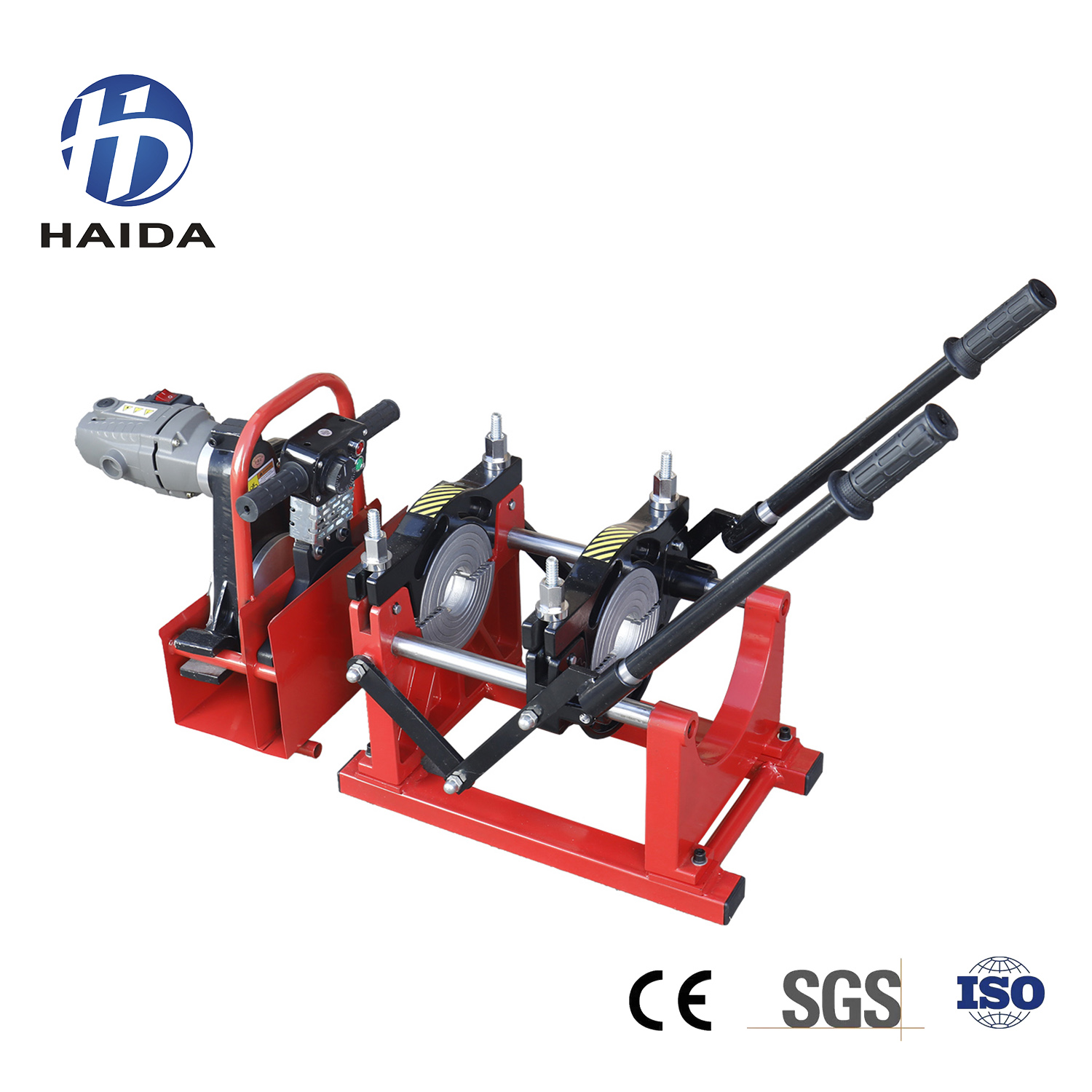

1.Including:Rack,Milling Cutter,Heating Plate,Basket
2.Working Environment Temperature:-40~+45ºC
3.Pressure Adjustable Range:0-6 Mpa
4.The Max.Temperature of Heating Plate:270ºC
5.Suitable Material:PE,PPR,PB,PVDF
Product Number:HD-ST160 | Including: Racks, Milling Cutter, Heating Plate, Basket |
Welding Range(mm) | 50、63、75、90、110、125、140、160 |
Docking Deviation(mm) | ≤0.2mm |
Temperature Deviation(℃) | ±3℃ |
Temperature Control Range(℃) | 0~300℃ |
Environment Temperature(℃) | -40~45℃ |
Time required to reach welding temperature | ＜20min |
Applicable Materials | PE、PPR、PB、PVDF |
Total Power:1kw+1.1kw=2.1 | Heating Plate:1kw/220v+Milling Cutter:1.1kw/220v |
Packing Size(cm) | 55*50*49cm |
Gross Weight(KG) | 37.5 |
