Product Details

HD-LG160 (2R) BUTT FUSION WELDING MACHINE

Product Description

Application and Features:

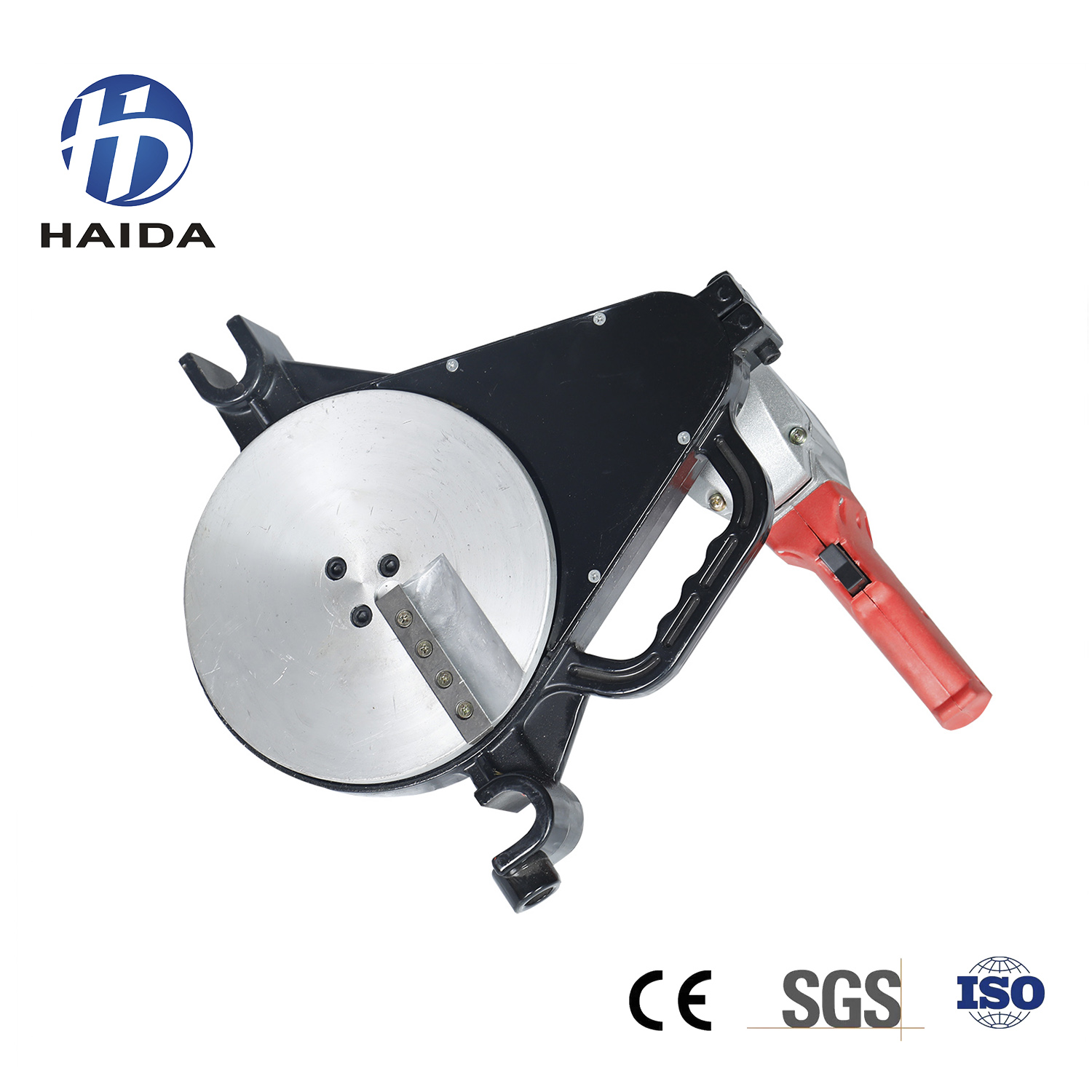

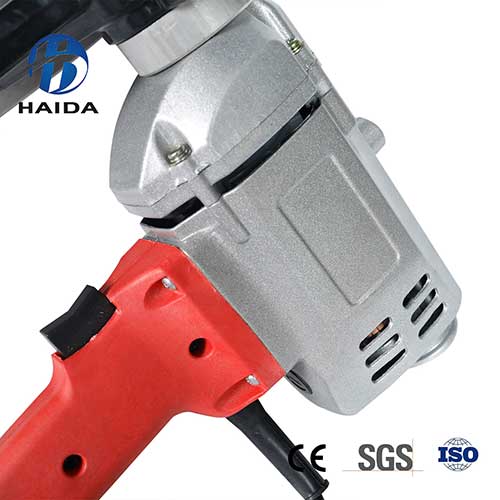

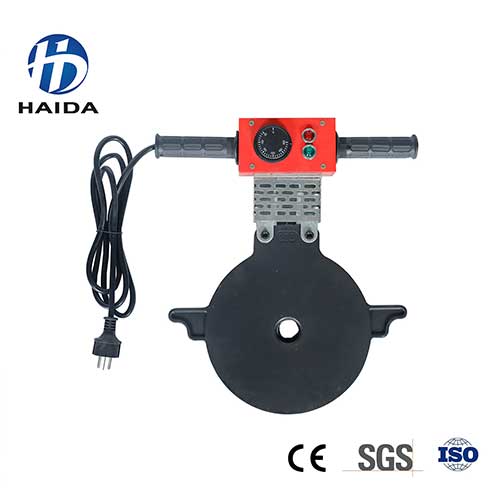

1.Including:Rack,Milling Cutter,Heating Plate,Basket


2.Working Environment Temperature:-40~+45ºC

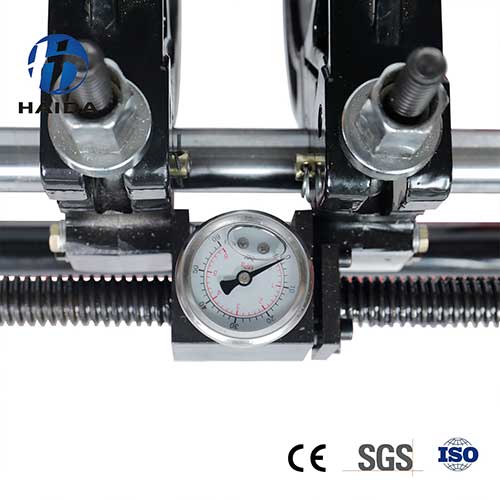

3.Pressure Adjustable Range:0-6 Mpa


4.The Max.Temperature of Heating Plate:270ºC


5.Suitable Material:PE,PPR,PB,PVDF


Product Number: HD-LG160 (2R)

Including: Racks, Milling Cutter, Heating Plate, Basket

Welding Range(mm)

50、63、75、90、110、125、140、160

Docking Deviation(mm)

≤0.2mm

Temperature Deviation(℃)

±3℃

Temperature Control Range(℃)

0~300℃

Environment Temperature(℃)

-40~45℃

Time required to reach welding temperature

<20min

Applicable Materials

PE、PPR、PB、PVDF

Total Power:1kw+1.1kw=2.1

Heating Plate:1kw/220v+Milling Cutter:1.1kw/220v

Packing Size(cm)

55*60*57cm

Gross Weight(KG)

39
